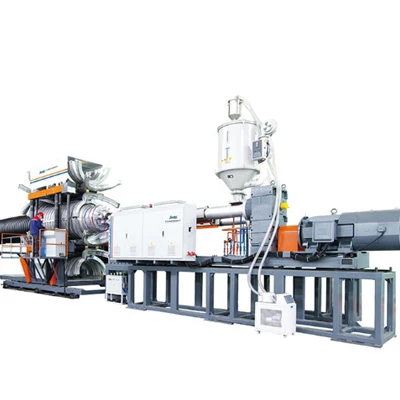

HDPE, PP, PVC Vertical Hom Ob Chav Phab Ntsa Corrugated Yeeb Nkab Ntau Lawm
Kev piav qhia
Kev ua tau zoo & Qhov zoo

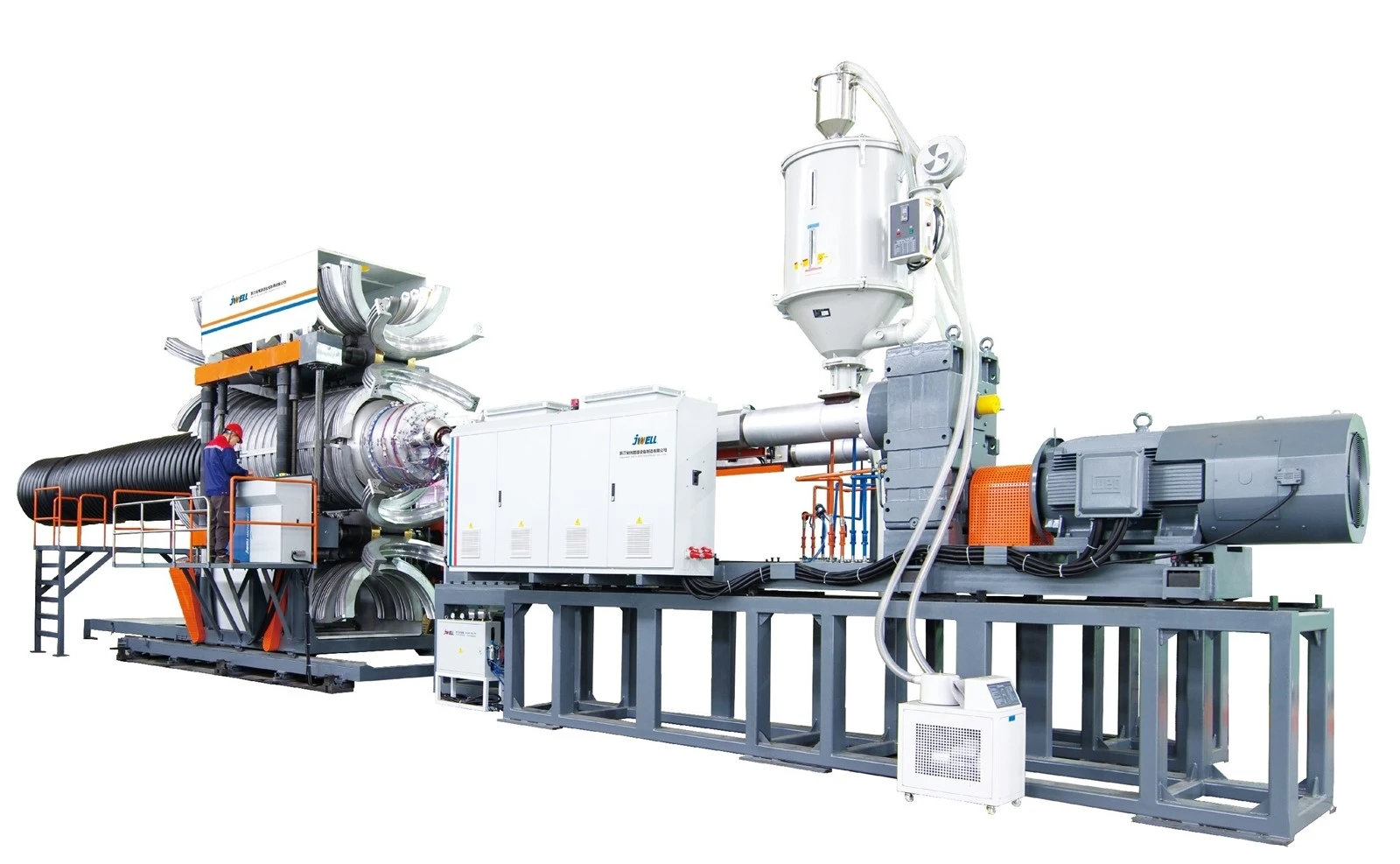

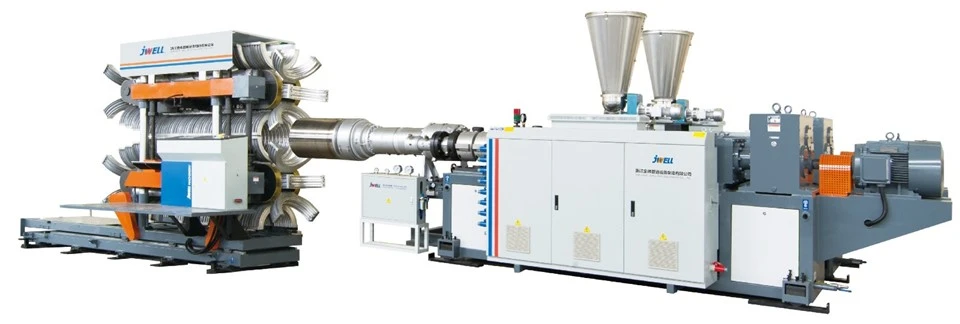

Hom ntsug no ob phab ntsa corrugated yeeb nkab ntau lawm kab yog ib qho ntse thiab siab -cov khoom siv ua haujlwm zoo rau HDPE, PP thiab PVC cov khoom ua, siv tag nrho lub computer centralized tswj system nrog humanized lag luam interface. Nws koom ua ke nrog cov txheej txheem extrusion molding, precision forming txheej txheem thiab ntse tswj txhais tau tias, featuring ruaj khov thiab siab tso zis muaj peev xwm, siab tsis siv neeg ntse kev ua hauj lwm, muaj zog adaptability, cov khoom siab precision thiab txhim khu kev qha ntev - lub sij hawm ua hauj lwm, thiab muaj peev xwm paub tas mus li thiab ruaj khov ntau lawm ntawm high- zoo ob chav phab ntsa corrugated kav (DWC) rau lub rooj sib tham loj 4} - ntau lawm {{-} cov khoom siv loj, ua tau zoo kev xav tau ntawm cov neeg siv khoom hauv kev tsim kho, kev tsim vaj tsev hauv nroog thiab cov yeeb nkab tsim kev lag luam.

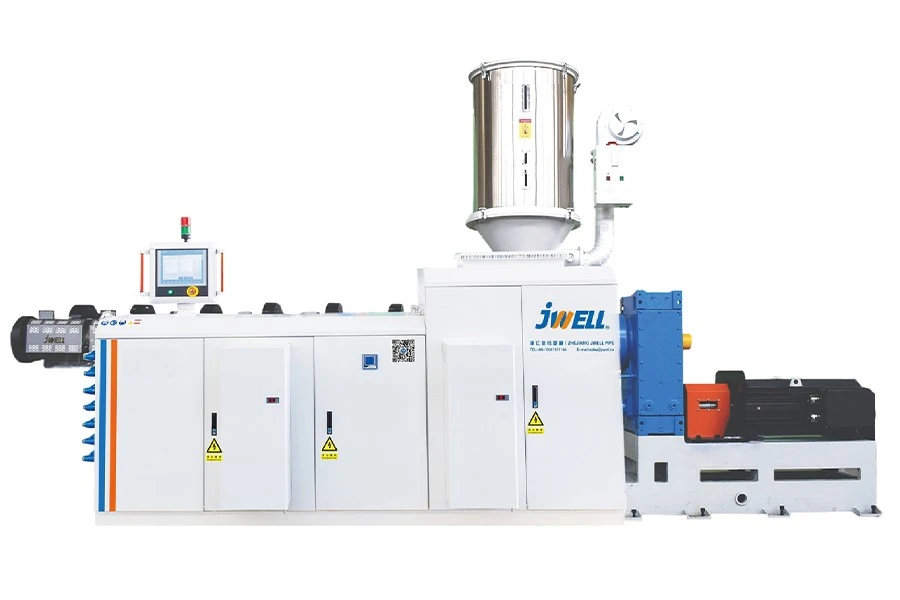

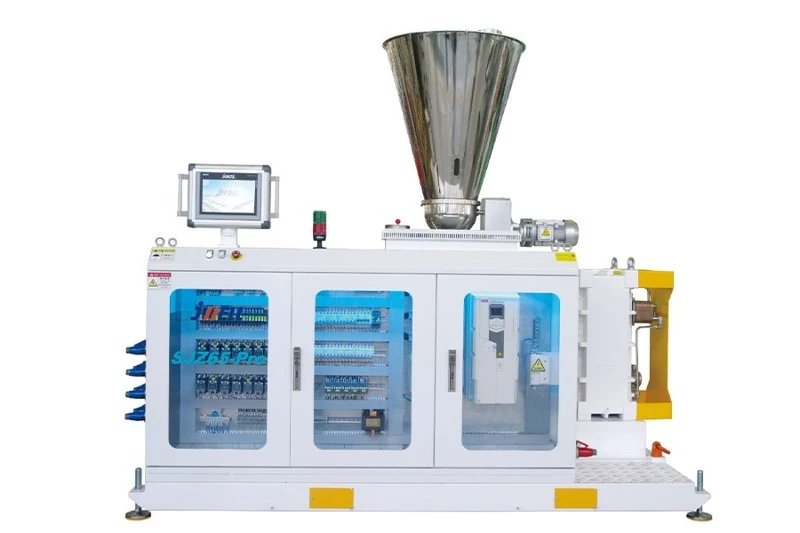

Optional Extruder:
Rau HDPE / PP corrugated yeeb nkab extrusion kab, siab - efficiency ib - ntsia hlau extruder yog muaj. Hom extruder no tshwj xeeb tsim los ua kom tau raws li qhov yuav tsum tau ua ntawm HDPE thiab PP cov ntaub ntawv, ua kom du thiab ua haujlwm tau zoo los tsim cov kav dej siab - zoo corrugated. Ib qho kev xaiv conical lossis parallel ntxaib - ntsia hlau extruder yog muaj rau PVC corrugated yeeb nkab extrusion kab. Nrog nws cov qauv tsim tshwj xeeb tapered, muaj qee qhov zoo ntawm cov khoom sib xyaw thiab siab tsim - nce.

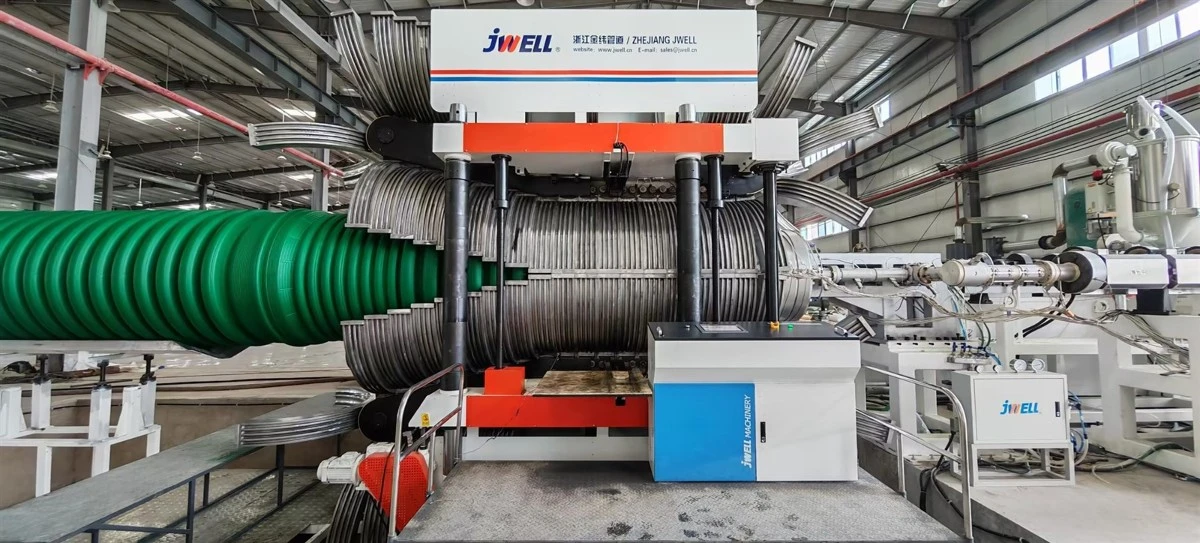

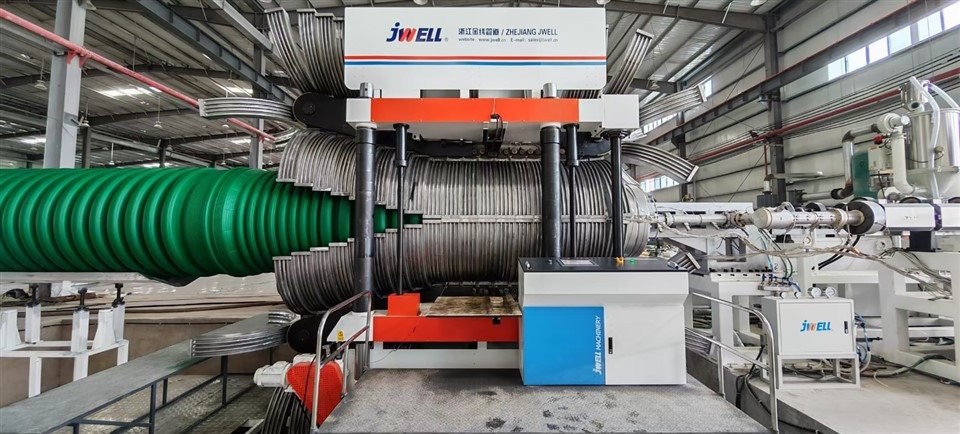

Precision Forming System:
Cov txheej txheem tsim yog tsim los ntawm cov pwm thaiv thiab lub corrugator. Cov pwm blocks yog tsim los hloov tau yooj yim. Cov yam ntxwv no tso cai rau kev hloov pauv ntau dua hauv cov txheej txheem tsim khoom, yoog raws cov kev tsim khoom sib txawv nrog yooj yim. Tsis tas li ntawd, cov pwm thaiv no muaj cua - lossis dej - cua txias. Cov tshuab cua txias no tiv thaiv kev kub dhau, uas tuaj yeem ua rau deformities lossis sub - cov qauv tso tawm.

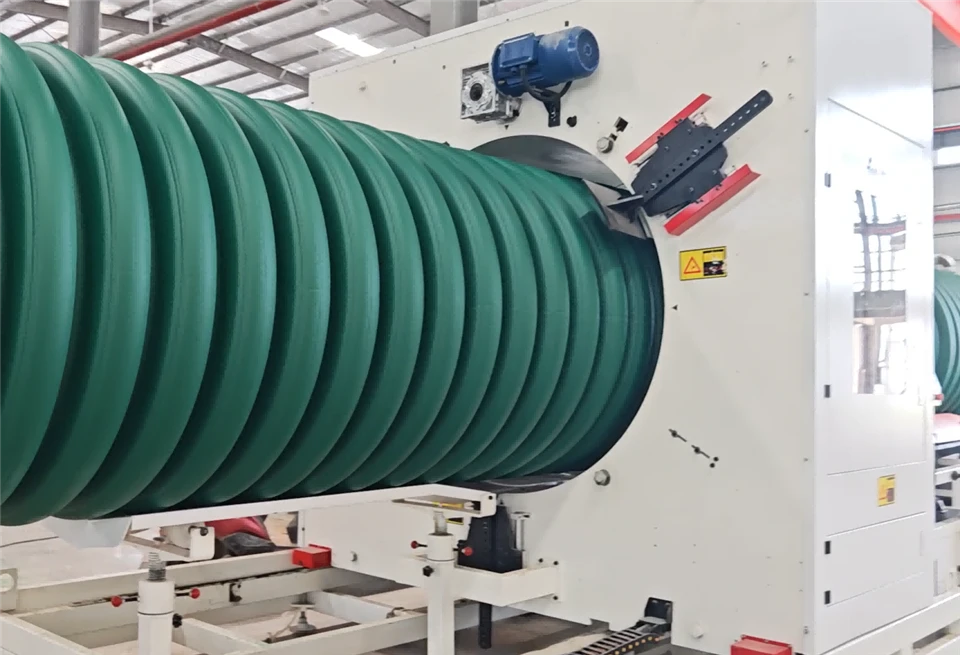

High -Kev txiav txim siab:
Ob - hniav cutter muab kev txiav kom huv si rau koj txhua lub sijhawm. Cov yeeb nkab kawg tuaj tawm zoo, tsis muaj burrs, yog li ntawm - qhov chaw sib txuas mus tau zoo thiab muaj cov khoom pov tseg tsawg dua.

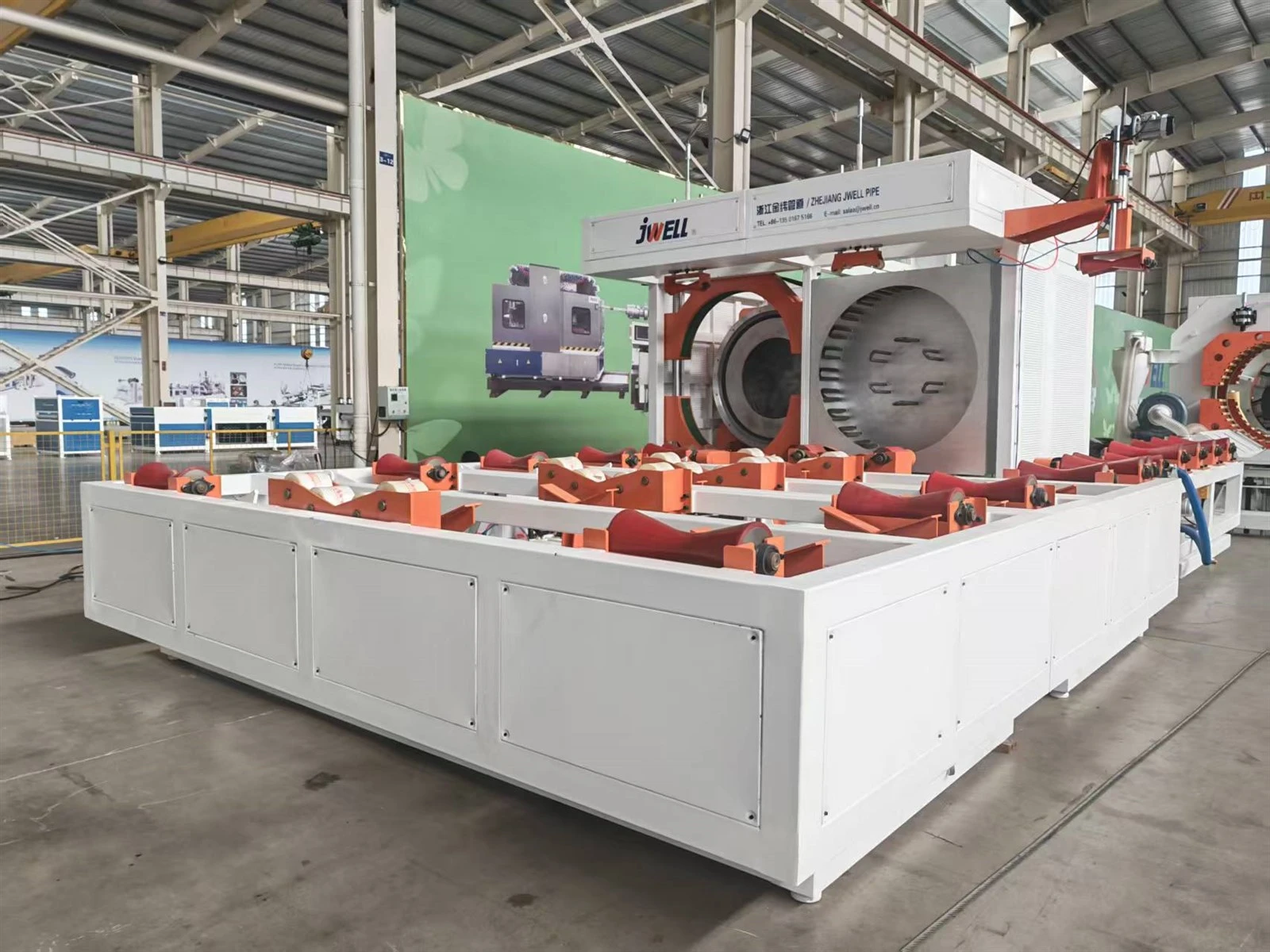

Online Belling:
Lub tshuab belling tuaj yeem ntsia tau tom qab cov kab ntau lawm - sockets yog tsim nyob rau hauv ib kauj ruam txuas ntxiv. Tsis xav tau qhov chaw nres tsheb sib cais lossis kev tuav pov hwm ntxiv, yog li txoj kab txuas ntxiv mus thiab tag nrho cov khoom tso tawm nyob twj ywm siab.
Corrugated yeeb nkab ntau lawm kab Main Technical Parameters
|
Qauv |
Cov yeeb nkab specification (mm) |
MAX Ceev(m/mhauv) |
Lub zog loj (kw) |
Cov zis (kg / h) |
|
JWSBL-300 |
110-300 |
5.0 |
250 |
400-500 |
|
JWSBL-600 |
200-600 |
3.5 |
500 |
600-800 |
|
JWSBL-800 |
200-800 |
3.0 |
680 |
1000 |
|
JWSBL-1000 |
200-1000 |
2.5 |
710 |
1200 |
|
JWSBL-1200 |
600-1200 |
1.0 |
800 |
1400 |
Vim li cas thiaj xaiv JWELL?
Rov qab los ntawm ntau tshaj 25 xyoo ntawm cov kws tshaj lij yas extrusion, JWELL Machinery yog ib lub ntiaj teb cov tuam txhab loj tshaj plaws ntawm cov yeeb nkab yas extrusion kab. Peb muab cov kev daws teeb meem ua tiav uas suav nrog R&D, kev tsim khoom, kev teeb tsa, thiab 24/7 tom qab- kev txhawb nqa muag - tag nrho xa los ntawm peb ntau lub hauv paus tsim khoom thoob ntiaj teb. Peb cov cuab yeej raug xa tawm mus rau ntau tshaj 120 lub teb chaws thiab cheeb tsam, qhov chaw uas nws ntseeg tau los ntawm cov tuam txhab ua lag luam rau nws cov pov thawj kev ntseeg tau thiab kev ua haujlwm zoo.
FAQ
Q1. Dab tsi yog qhov zoo ntawm JWELL MACHINERY piv nrog rau lwm lub npe?
A1. Tus nqi- zoo (tus nqi qis dua European thiab Asmeskas hom rau tib qho kev teeb tsa); Cov lus teb ceev (kev tsim khoom hauv zos hauv Suav teb, lub voj voog luv luv 3 ~ 6 lub hlis rau cov khoom siv li niaj zaus); Mature technology (ntau tshaj 20 xyoo ntawm kev lag luam kev lag luam, khoom ruaj khov); Kev pabcuam thoob ntiaj teb (ntau- pab pawg pab txhawb nqa lus thiab chaw ua haujlwm txawv teb chaws).
Q2. Kuv puas tuaj yeem siv tshuab yog tias tsis muaj cov kws tshaj lij engineers?
A2. Peb tuaj yeem xa cov engineers txaus rau cov neeg siv khoom lub Hoobkas hauv luv luv - sijhawm (5-15 hnub), thiab cov neeg siv khoom tuaj yeem xa engineer mus rau JWELL Hoobkas rau kev cob qhia kom tau txais kev txawj ntse ntawm lub tshuab ua haujlwm thiab kev tswj xyuas.
Q3. Lub warranty ntev npaum li cas?
A3. Peb muab cov tshuab zoo rau koj nrog 12 lub hlis lav thiab teb koj sai li sai tau hauv 6 teev.
Q4. Koj lub peev xwm ntau lawm yog dab tsi?
A4. Peb tsim ntau tshaj 3000 cov kab extrusion siab tshaj txhua xyoo thoob ntiaj teb.
Q5. Puas muaj qhov kev pab cuam tom qab muag hauv koj lub tebchaws?
A5. Qhov chaw pabcuam ncaj qha: Nyab Laj (Ho Chi Minh City); Qaib ntxhw (Istanbul); Russia (Moscow) 58 tau cog lus rau cov chaw muab kev pabcuam hauv lwm qhov chaw.
